Efficient and Accurate Weighing and Labeling Solution
Key Features
● High Production Efficiency: Labeling speed of up to 50 packs per minute, meeting large-scale production demands.
● Precise Weighing: Supports a maximum weighing range of 12kg with an accuracy of 1g-5g, ensuring data accuracy.
● Automatic Adjustments: Automatically adjusts product guidance, printer, label position, and label rotation for user convenience.
● Quick Label Roll Replacement: Servo-controlled label reel for fast and efficient roll changes.
● Versatile Printing Methods: Supports both thermal printing and thermal transfer printing, adaptable to various needs.
● Convenient Conveyor Belt Replacement: Cable-free plug-in system enables quick conveyor belt changes.
Equipment Structure
● Industrial-Grade Stainless Steel Body, durable and suitable for various production environments.
● Multiple Print Head Options: Supports 12 dots/mm (300 dpi) and 8 dots/mm (200 dpi) print resolutions, corresponding to print widths of 104mm and 80mm, respectively.
● High-Performance Labeling System, adaptable to different label specifications without adjustments.
Intelligent Terminal Display
● Brilliant Touchscreen Color Display, offering an intuitive operation experience.
● Visual Template Editing, enabling real-time label content modification.
● System Interaction Control, providing smarter and more user-friendly operation.
● Convenient Data Management, supporting master data input and editing.
● Powerful Label Software, featuring TrueType font and logo design support.
● Remote Maintenance & Updates, allowing for online diagnostics and system upgrades via the Internet.
Technical Specifications
● Conveyor Belt Size: 300-600mm (width) × 400-1000mm (length)
● Printing Method: Thermal Printing / Thermal Transfer Printing
● Maximum Print Width: 110mm
● Printing Speed: Up to 300mm/s
● Label Size: Width 30mm x 30mm to 100mm x 100mm
● Label Roll Specifications:
oInner Diameter: 76mm
oMax Outer Diameter: 330mm
● Ribbon Specifications:
oInner Diameter: 25.4mm
oOuter Diameter: 81mm
● Barcode Formats: EAN/UPC 8, EAN/UPC 13, EAN/UPC 128, Code 2/5 int., Code 39, Code 128, GS1-128, PDF417, GS1 DataBar, Data Matrix, QR Code, etc.
● Power Supply: 220V / 50Hz, 350W
● Operating Temperature: 0°C to 40°C, standby mode down to -10°C
● Humidity Range: 20% - 90%
● Memory: 2GB

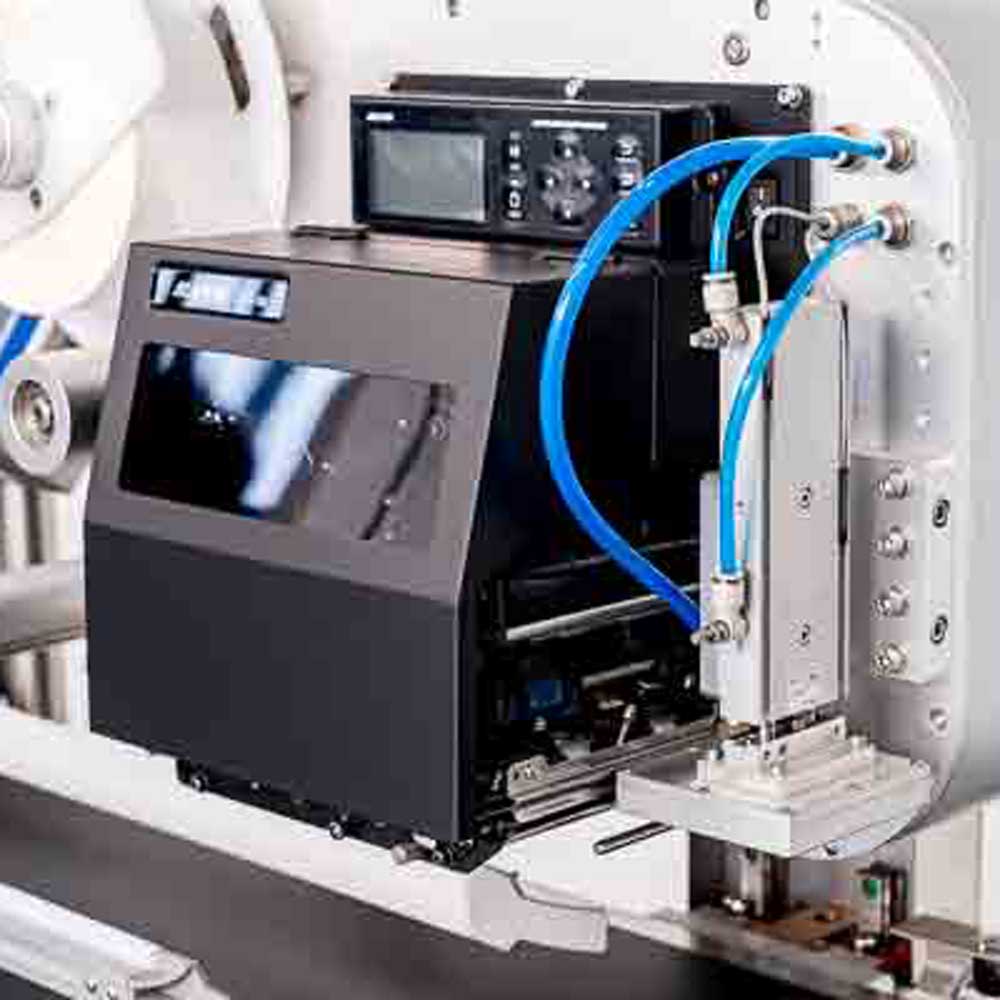

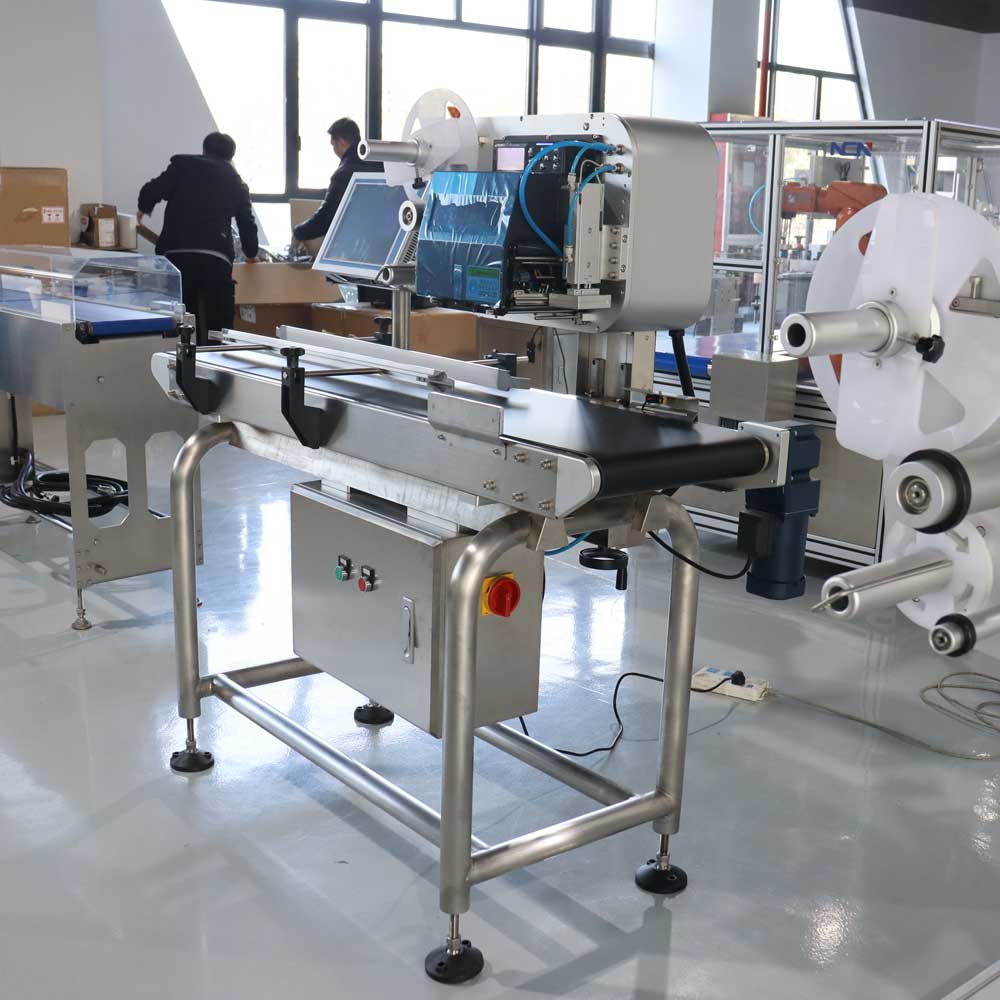

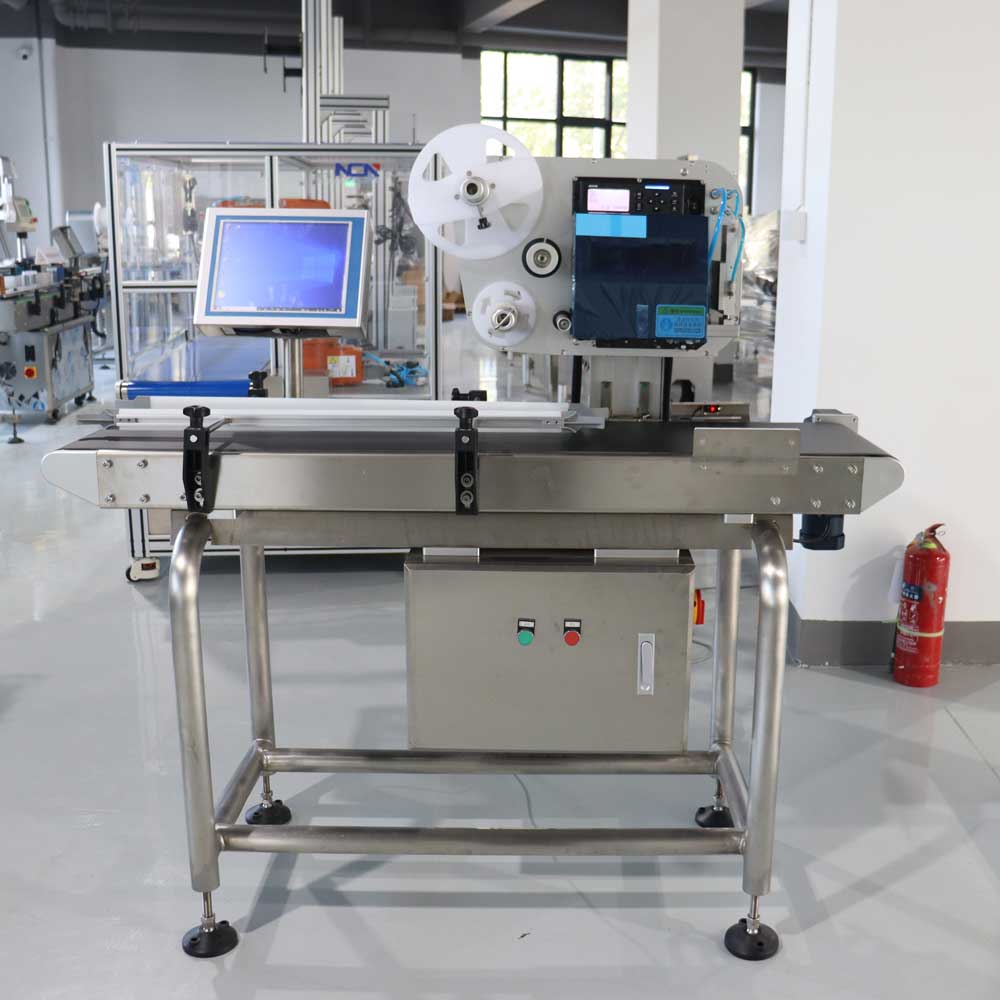

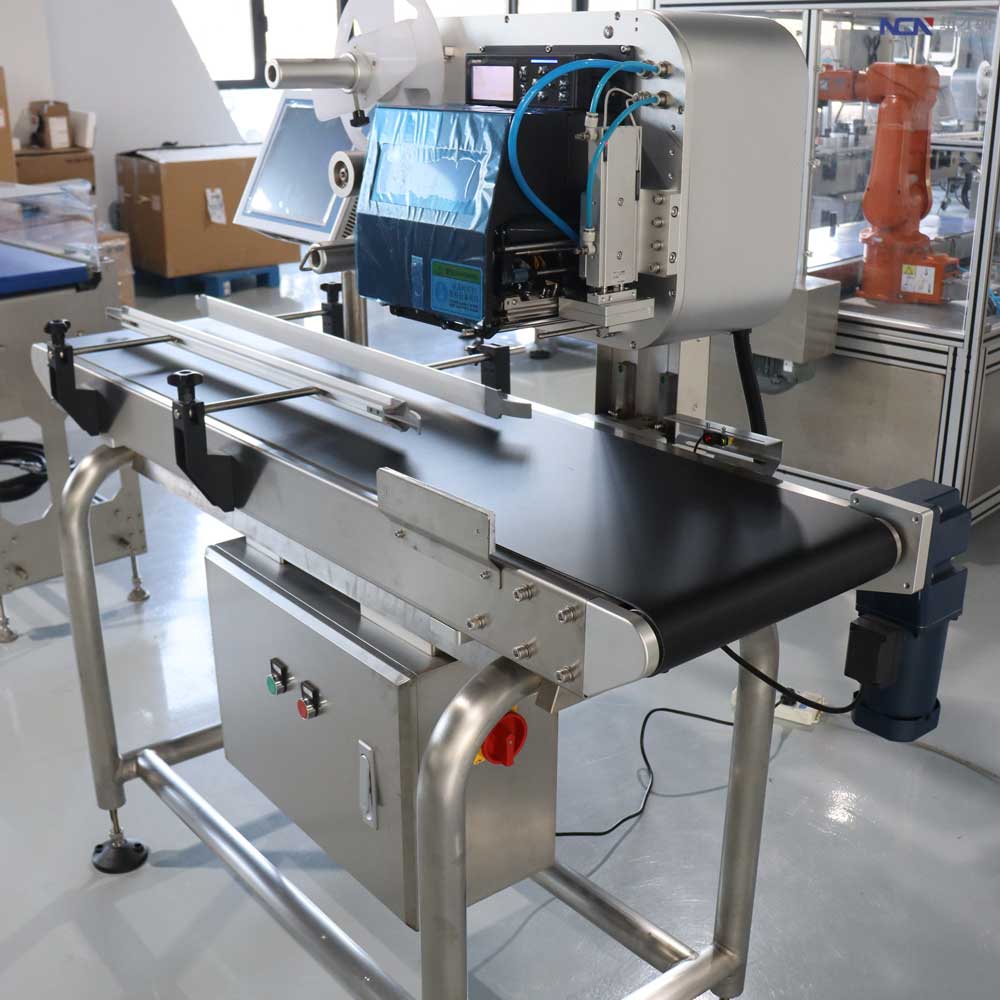

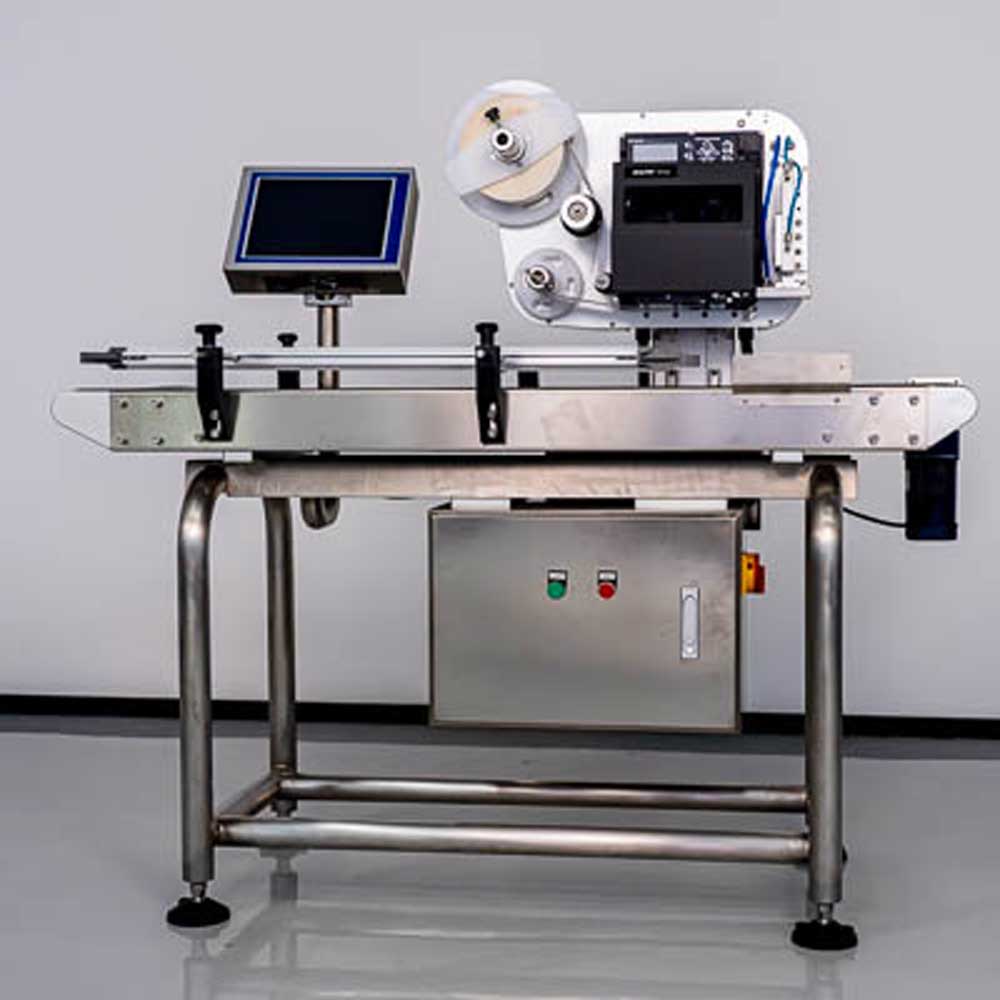

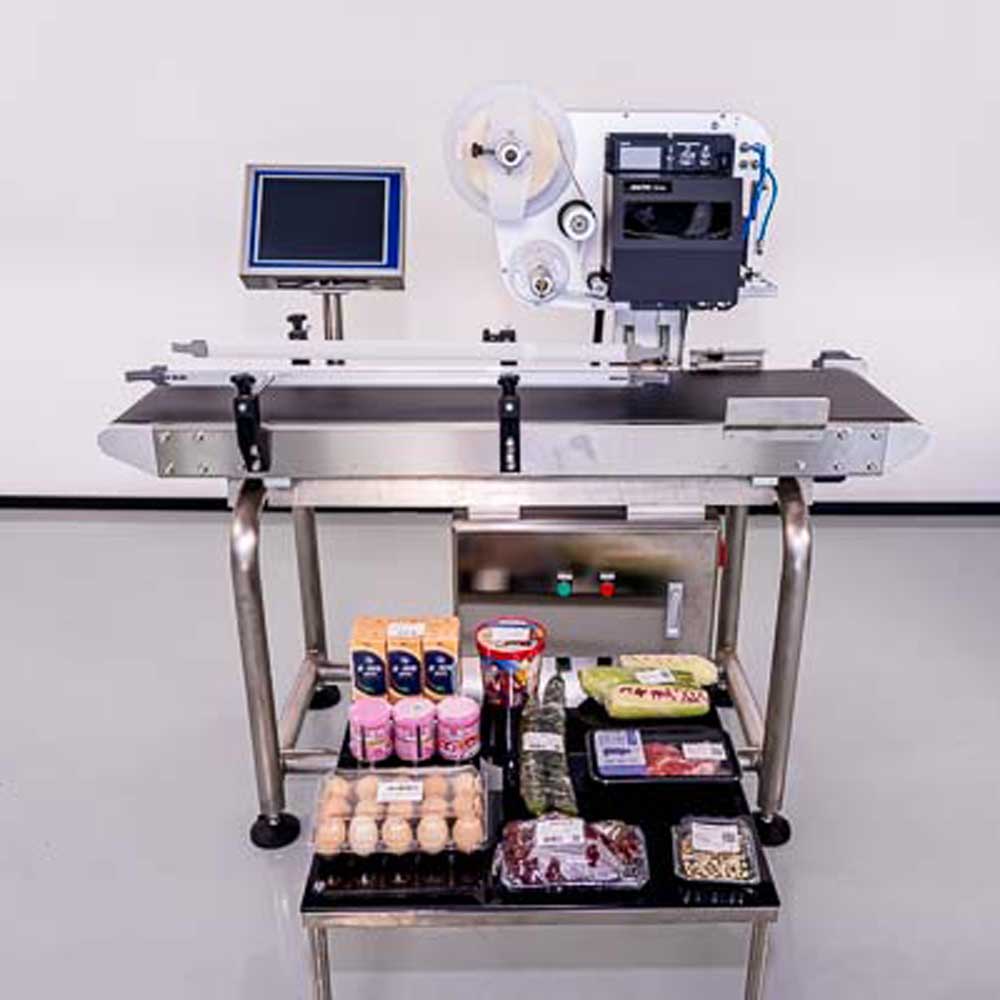

Product Display
