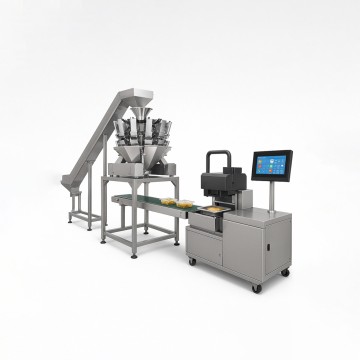

NCN Vertical Packaging System with Multihead Weigher Accurate Weighing Meets Efficient Packaging

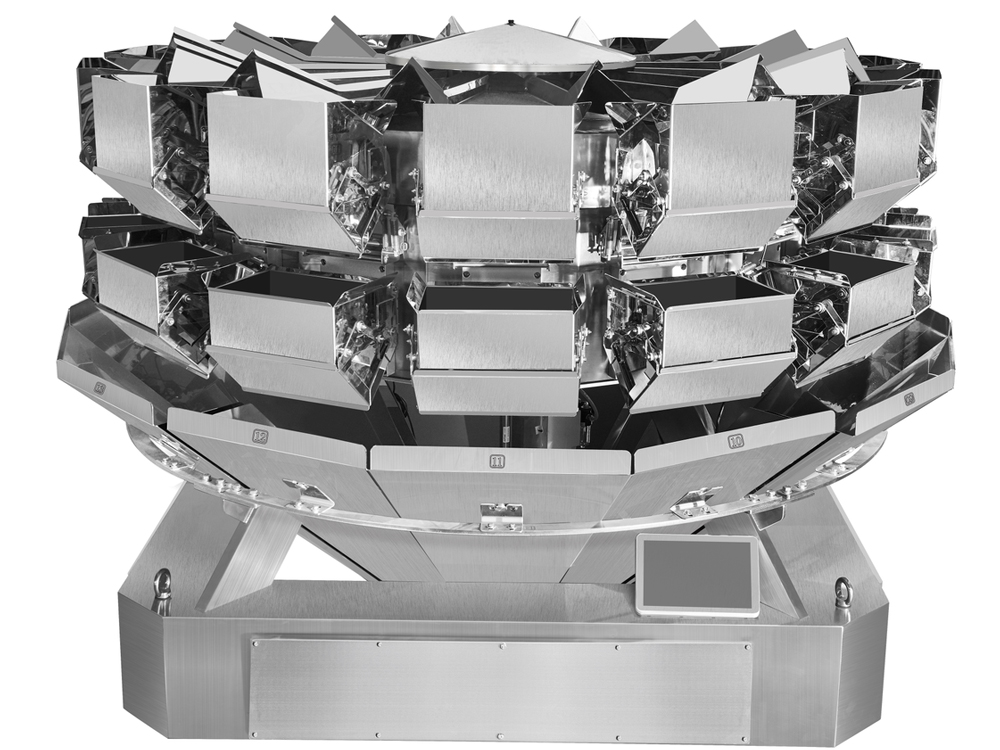

Intelligent Multihead Weigher
Application:
Ideal for weighing regular or irregular-shaped products such as potato chips, frozen foods, vegetables, seafood, screws, and more.
Features:
● Large 7L hoppers suitable for long items up to 21cm
● Stable 4-sided frame design with modular components for easy maintenance
● Rotary or vibrating feed options to meet different material characteristics
● Photoelectric detection & weight check systems for high accuracy
● Anti-clogging design for light and fragile items like puffed snacks
● User-friendly 10.4” touch screen with multi-language interface (EN, FR, ES, CN, etc.)
● Tool-free contact part removal for easy cleaning
● Compatible with both fully and semi-automatic lines
Specifications:
|
Parameter |
Details |
| Weighing Range | 20–5000g |
| Max. Speed | 60 bags/min |
| Accuracy | ±3g (most products) |
| Hopper Volume | 7.0L |
| Control Screen | 10” touchscreen |
| Power Supply | 220V / 50/60Hz, 12A, 1500W |
| Drive | Stepper motor |
| Machine Size | 2650×1650×2070 mm |
| Gross Weight | 980 kg |
Vertical Form-Fill-Seal Machine
Application:
Used for forming pouches from roll film, filling product, date coding, sealing, and cutting. Suitable for both food and non-food packaging.
Features:
● Cost-effective & high efficiency packaging line
● Advanced PLC control system with user-friendly HMI touchscreen
● Servo film pulling system with pneumatic horizontal sealing for accuracy
● Fully automatic process: Feeding → Bag forming → Filling → Sealing → Date printing → Gas flushing/exhaust → Counting → Output
● Flexible bag types: Pillow bags, gusseted/stand-up bags, with optional punch hole
Specifications:
|
Parameter |
Details |
| Packing Speed | 5–40 bags/min |
| Bag Size | L 200–400 mm, W 150–350 mm |
| Bag Type | Pillow bag, gusseted bag, optional punch hole |
| Max. Film Width | 720 mm |
| Film Thickness | 0.04–0.09 mm |
| Air Consumption | 0.8 Mpa, 0.5 m³/min |
| Power Supply | 2.2kW / 380V, 50–60Hz |
| Machine Size | 1900×1300×1840 mm |
| Machine Weight | 850 kg |

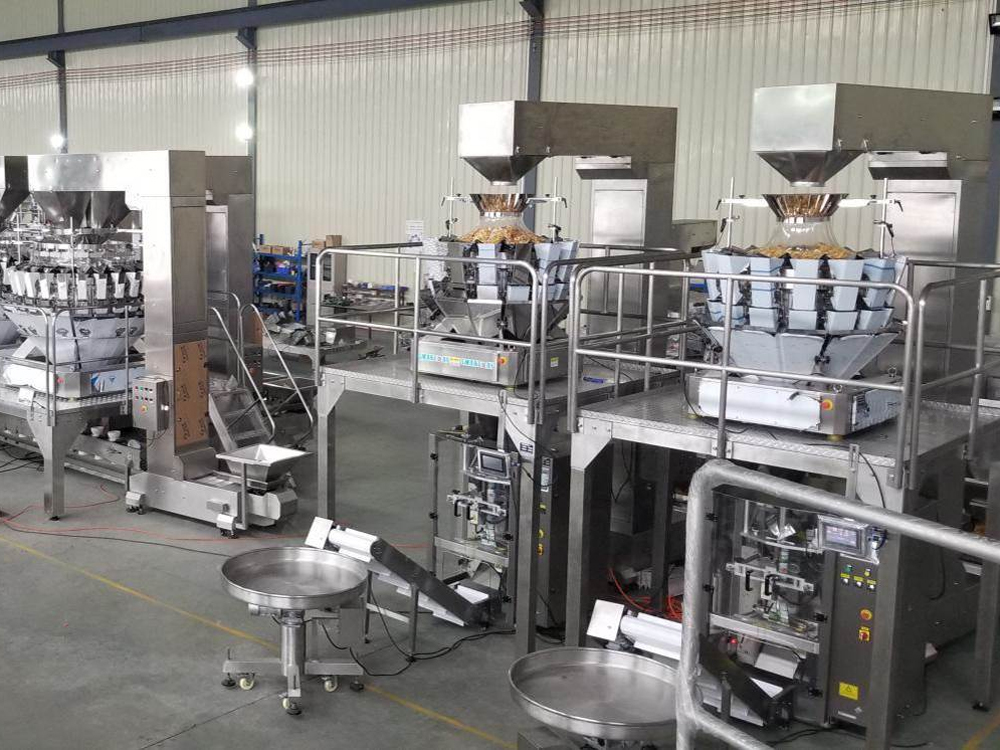

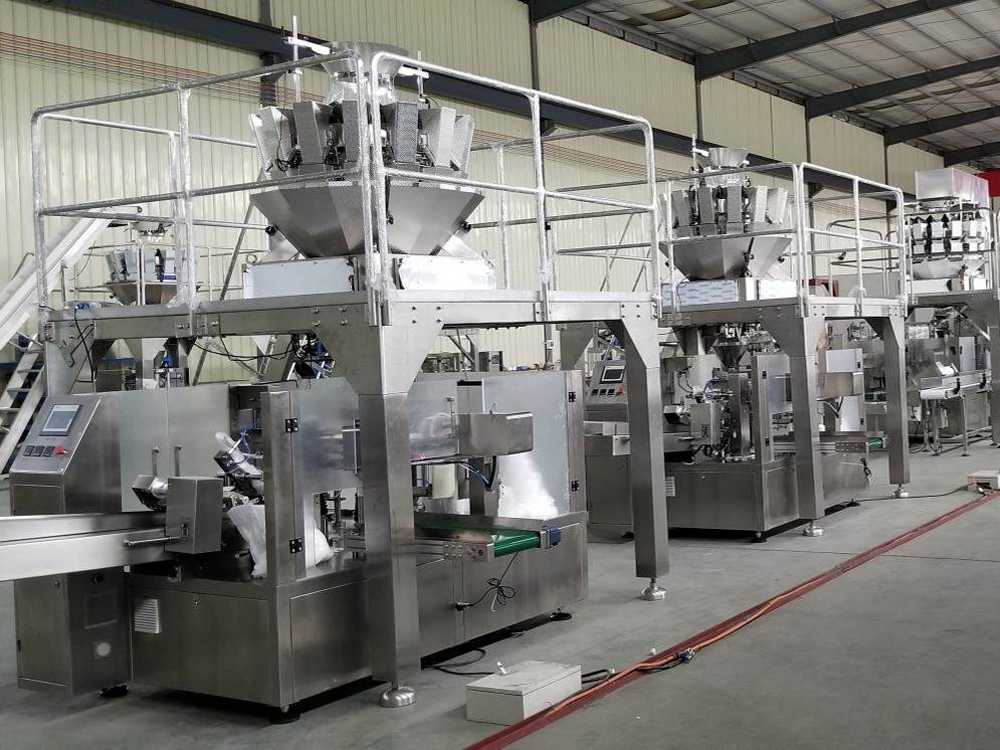

Perfect for Packaging
Snacks, frozen foods, nuts, vegetables, seafood, screws, and other granule or strip-type items.
Looking for a reliable, smart, and efficient vertical packaging system?
Contact us today for a tailored solution and global service support.
