NCN-WPL Series Real-Time Print & Apply Labeling Machine (Side Labeling)
Key Features & Performance
✅ High-Speed Labeling: Up to 60 packs per minute (depending on label size)
✅ Automatic Adjustments: Product guides, printer settings, label positioning, and rotation auto-adjusted
✅ Efficient Label Reel Change: Servo-controlled system enables quick roll replacement
✅ Dual Printing Modes: Thermal transfer & direct thermal printing, easily interchangeable
Advanced Construction & Applicator System
Thermal Printer Options:
● 12 dots/mm (300 dpi), print width 104 mm
● 8 dots/mm (200 dpi), print width 80 mm
High-Performance Applicator System for accurate and stable labeling
No Manual Adjustments Required for different label sizes
Rotatable Labeling for customized market positioning
Smart Terminal & User-Friendly Interface
● Fixed & Variable Weight Switching
● Brilliant Color Touchscreen Display for intuitive operation
● On-Screen Operator Guidance with interactive label editing
● Real-Time System Control & Master Data Entry
● Built-in Label Software with TrueType fonts & logo support
● Expandable Software for Packaging & Customization
● Remote Maintenance via Internet for effortless troubleshooting
Technical Specifications
✔ Printing Process: Thermal direct / Thermal transfer
✔ Print Width: 110 mm
✔ Print Speed: Up to 300 mm/s
✔ Label Size: Width 30 mm - 100 mm, Height 30 mm - 100 mm
✔ Label Roll Size:
● Core Diameter: 76 mm
● Max Outer Diameter: 330 mm
✔ Thermal Transfer Ribbon:
● Core Diameter: 25.4 mm
● Max Outer Diameter: 81 mm
✔ Barcode Compatibility: EAN/UPC, Code 128, GS1, QR Code, Data Matrix, PDF417, etc.
✔ Power Supply: 220 V / 50 Hz, 350W
✔ Operating Temperature: 0°C to 40°C (standby: -10°C)
✔ Humidity Range: 20 - 90%
✔ Memory Capacity: 2 GB
Enhance Productivity with NCN-WPL Series
The NCN-WPL Series is the ultimate solution for side labeling applications, ensuring high-speed, precise, and intelligent labeling for industries such as food, pharmaceuticals, electronics, cosmetics, and logistics. With its real-time printing, automated adjustments, and smart connectivity, this machine optimizes efficiency while reducing operational costs.
🔹 NCN Automation – Your Trusted Partner for Smart Labeling Solutions!

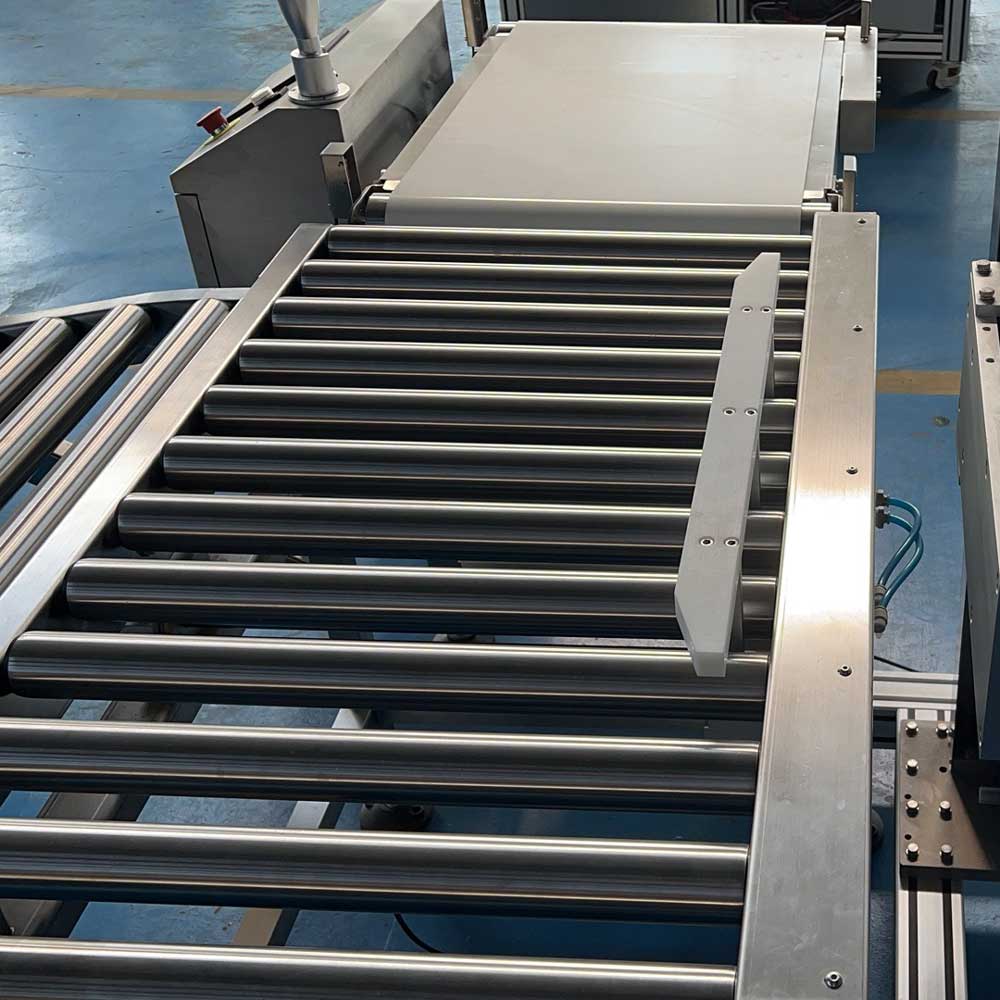

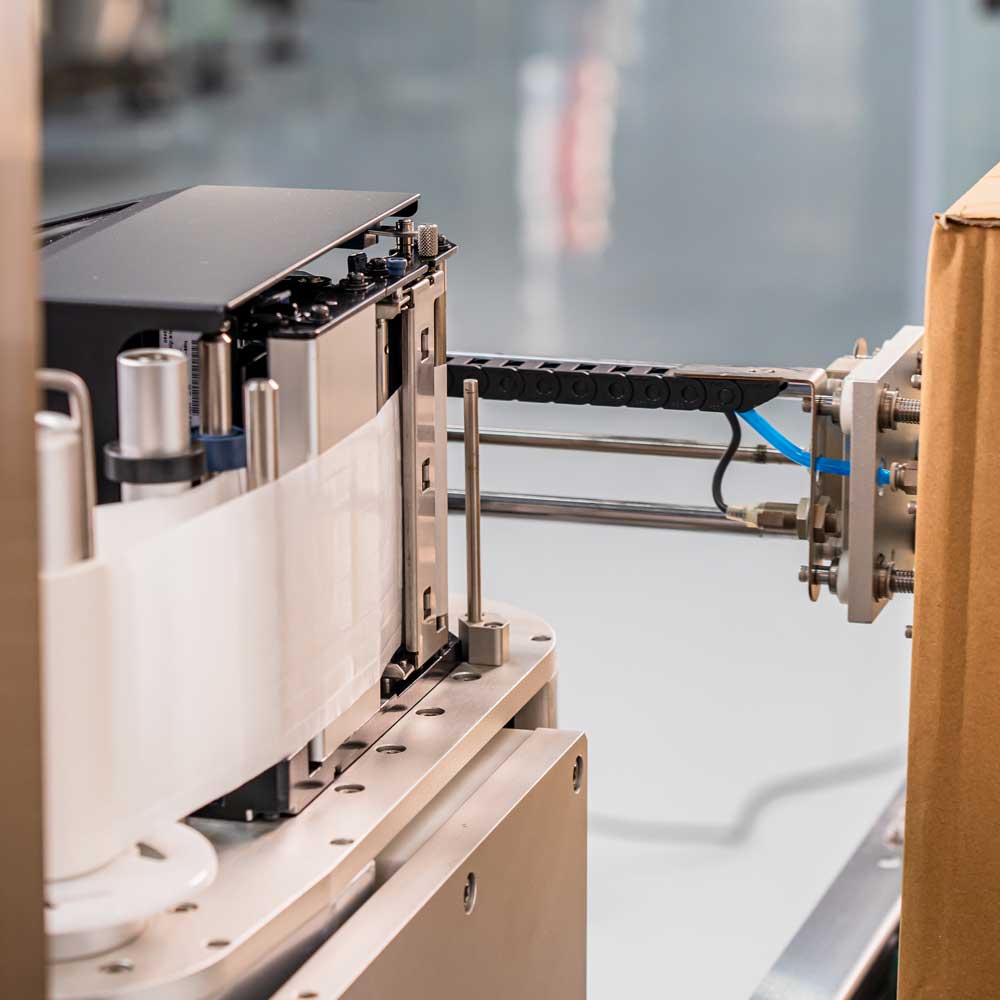

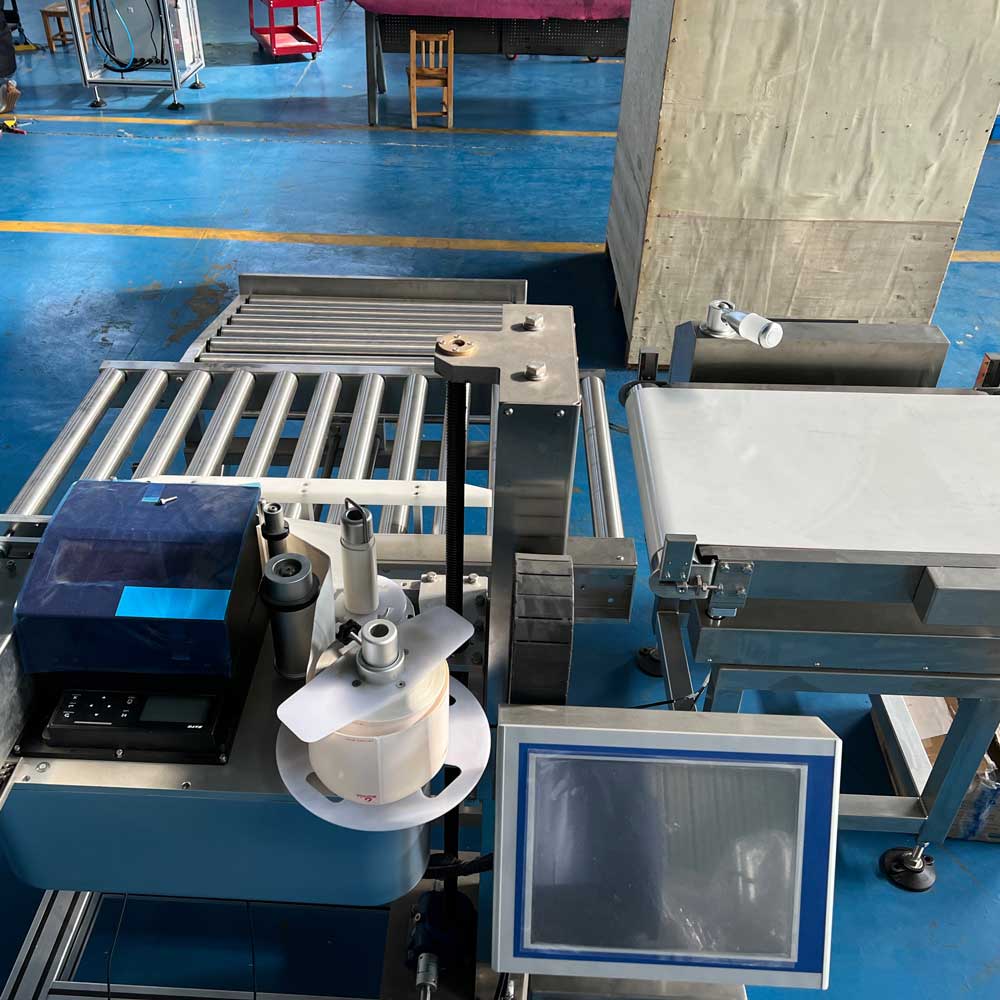

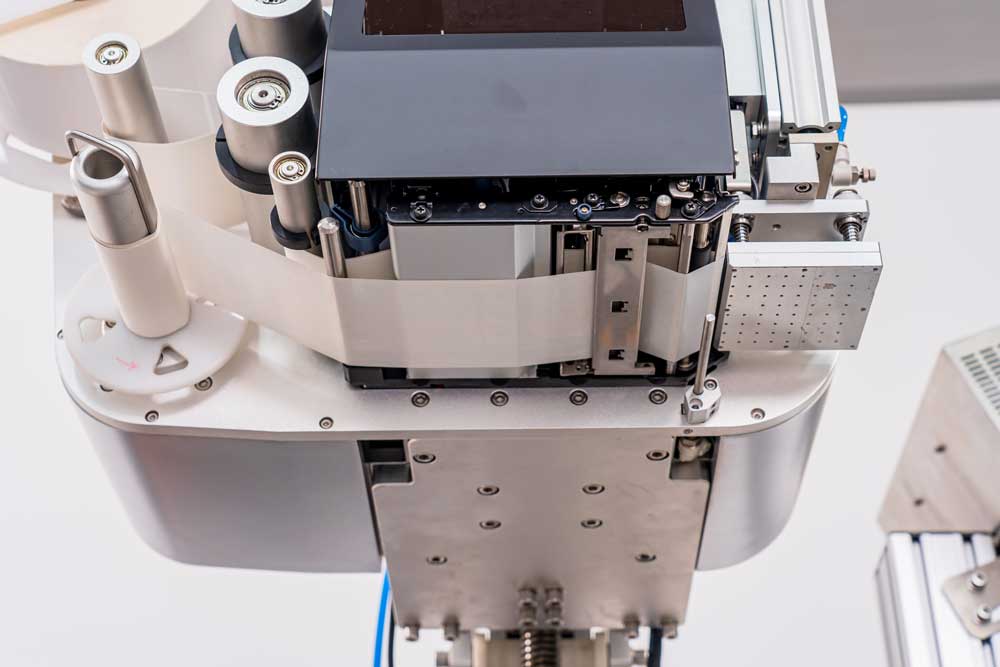

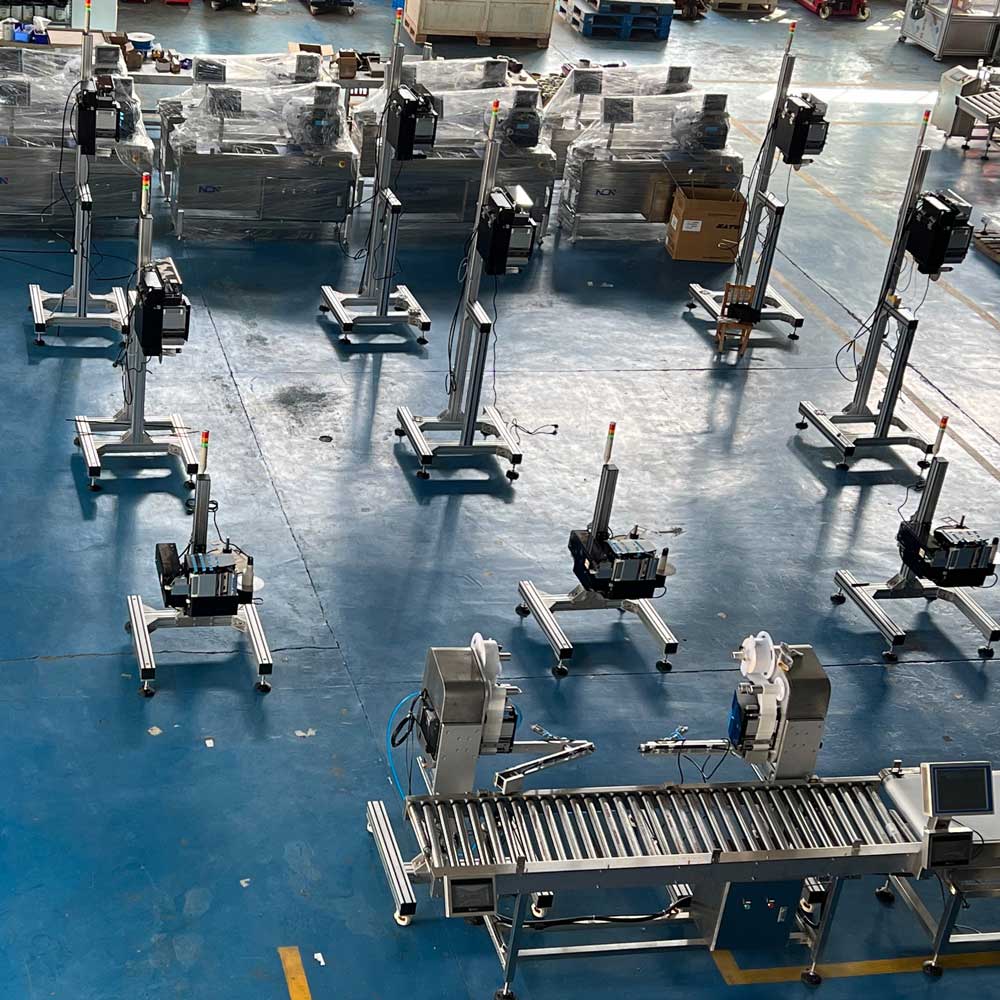

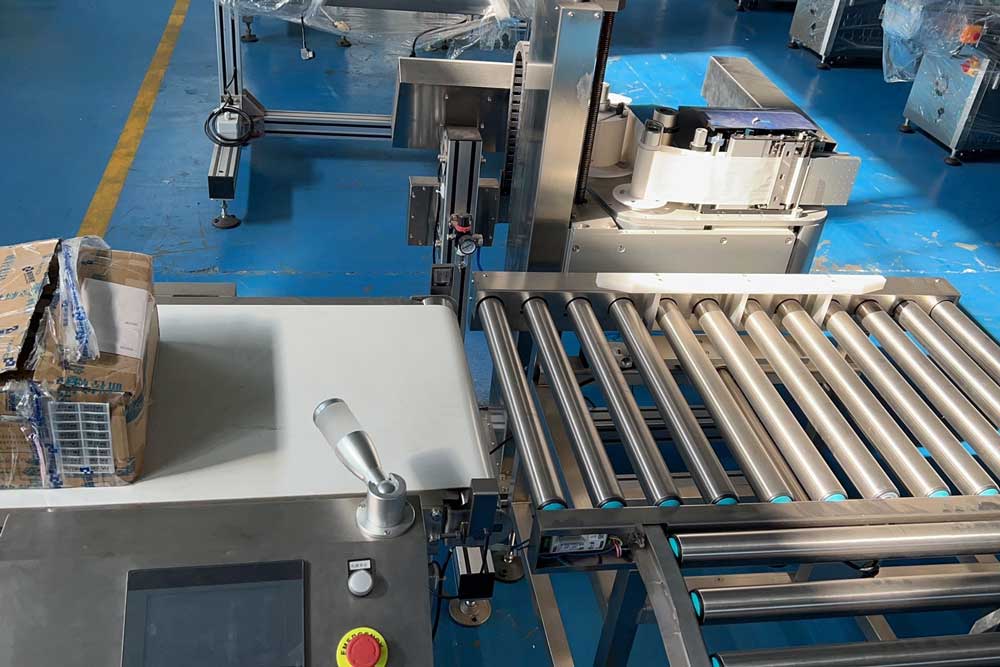

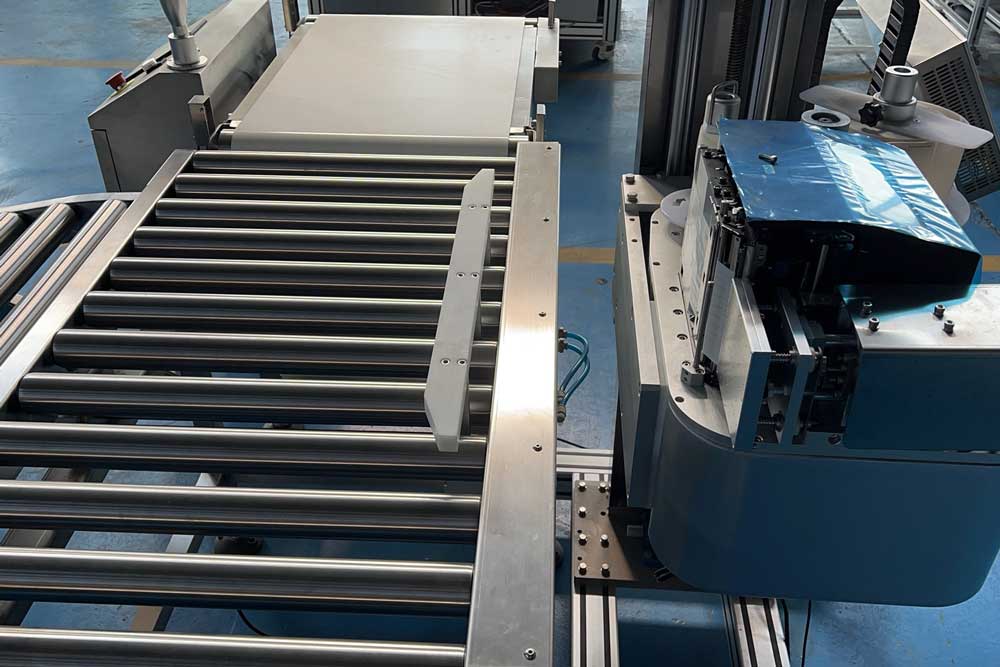

Product Display
