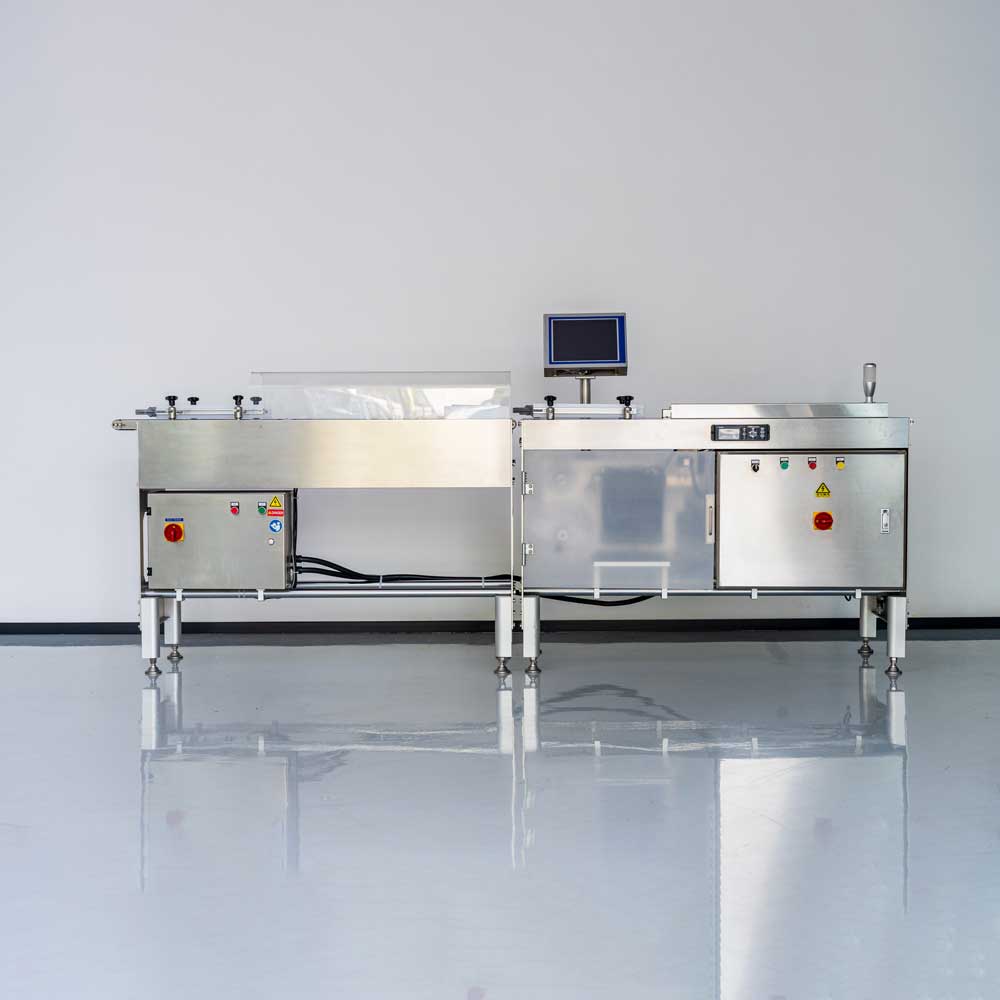

NCN-WPL Series Weighing & Bottom Labeling Machine

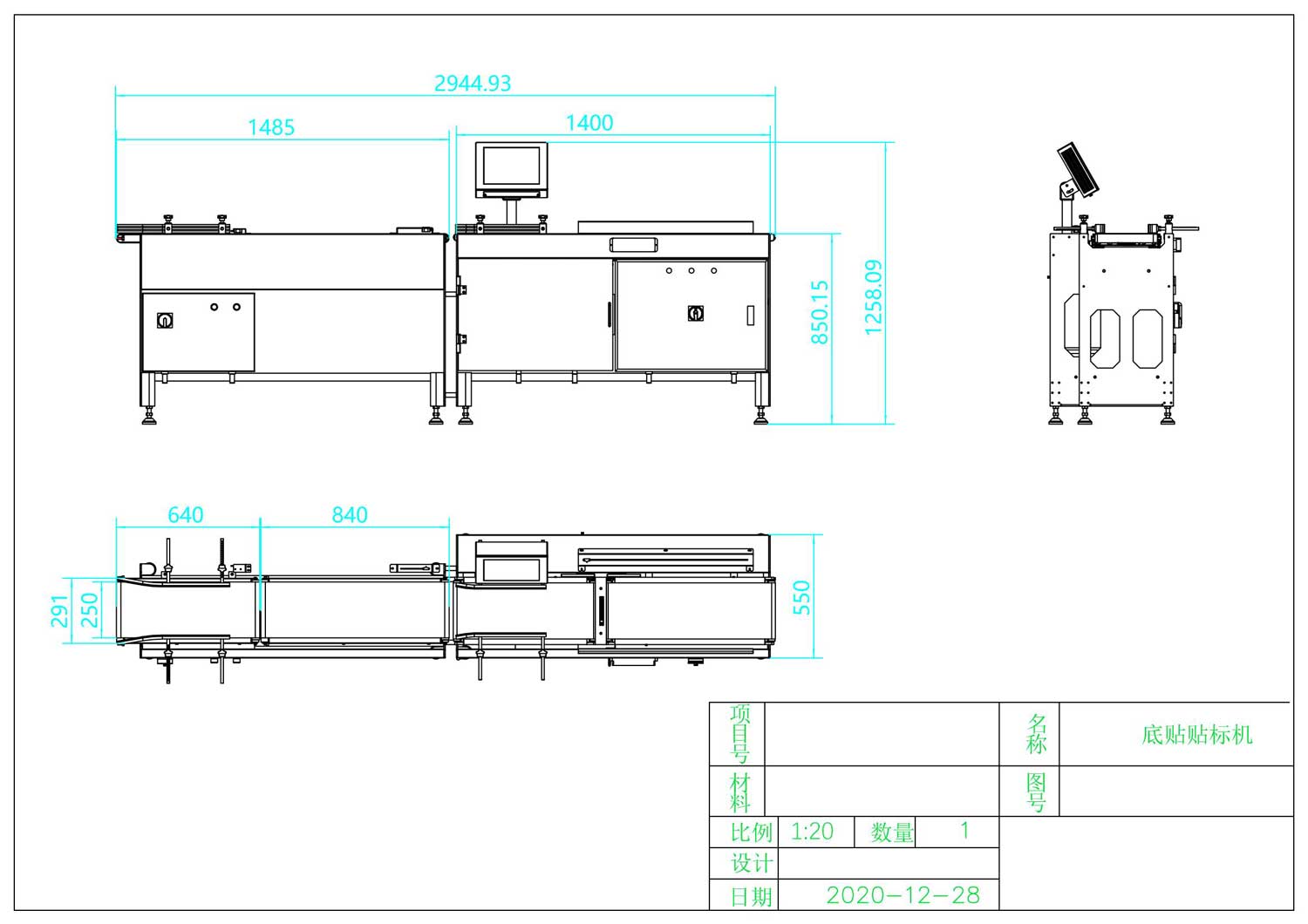

Technical Specifications
✔ Weighing Range: 0 - 3000g
✔ Display Division: 1g
✔ Accuracy: ±2g
✔ Printing Method: Thermal Printing
✔ Labeling Speed: 50 pcs/min (varies by product length)
✔ Label Roll Size:
● Max Outer Diameter: ≤240mm
● Core Diameter: 76mm
✔ Label Printing Speed: 4 - 12 ips (101.6 - 304.8mm/s)
✔ Conveyor Belt Speed: 20 - 40 m/min
✔ Conveyor Belt Dimensions:
● Segmented into 4 sections:
● Product Spacing Section: 630mm
● Weighing Platform: 830mm
● Bottom Labeling Entry: 640mm
● Bottom Labeling Exit: 730mm
✔ Conveyor Belt Height: 850mm (±30mm adjustable feet)
✔ Conveyor Belt Width: 250mm (effective width)
✔ Machine Dimensions:
● Bottom Labeling Unit: 1420 × 550 × 1260mm
● Weighing Unit: 1500 × 420 × 1030mm
✔ Product Size Compatibility: 200mm - 700mm
✔ Power Consumption: 300W
✔ Power Supply: AC 220V (50Hz)
✔ Air Consumption: 90 - 150L/min
✔ Machine Weight: 256KG
✔ Operating Temperature: 0 - 40°C
Key Features & Advantages
✅ High-Precision Weighing: Accurate weight measurement with ±2g precision
✅ Real-Time Bottom Labeling: Seamlessly integrates weighing and labeling in one process
✅ Fast & Efficient: Labeling speed up to 50 pcs/min, conveyor speed 20-40 m/min
✅ Flexible Conveyor System: Adjustable height and 4-section segmented design
✅ User-Friendly Interface: Simple operation with intelligent control system
✅ Durable & Reliable: Built for continuous industrial use with robust construction
Optimized for Various Industries
Perfectly suited for food processing, pharmaceuticals, logistics, e-commerce packaging, and manufacturing industries, the NCN-WPL Weighing & Bottom Labeling Machine enhances operational efficiency and ensures compliance with weight and labeling standards.
🔹 NCN Automation – Precision Weighing, Smart Labeling!

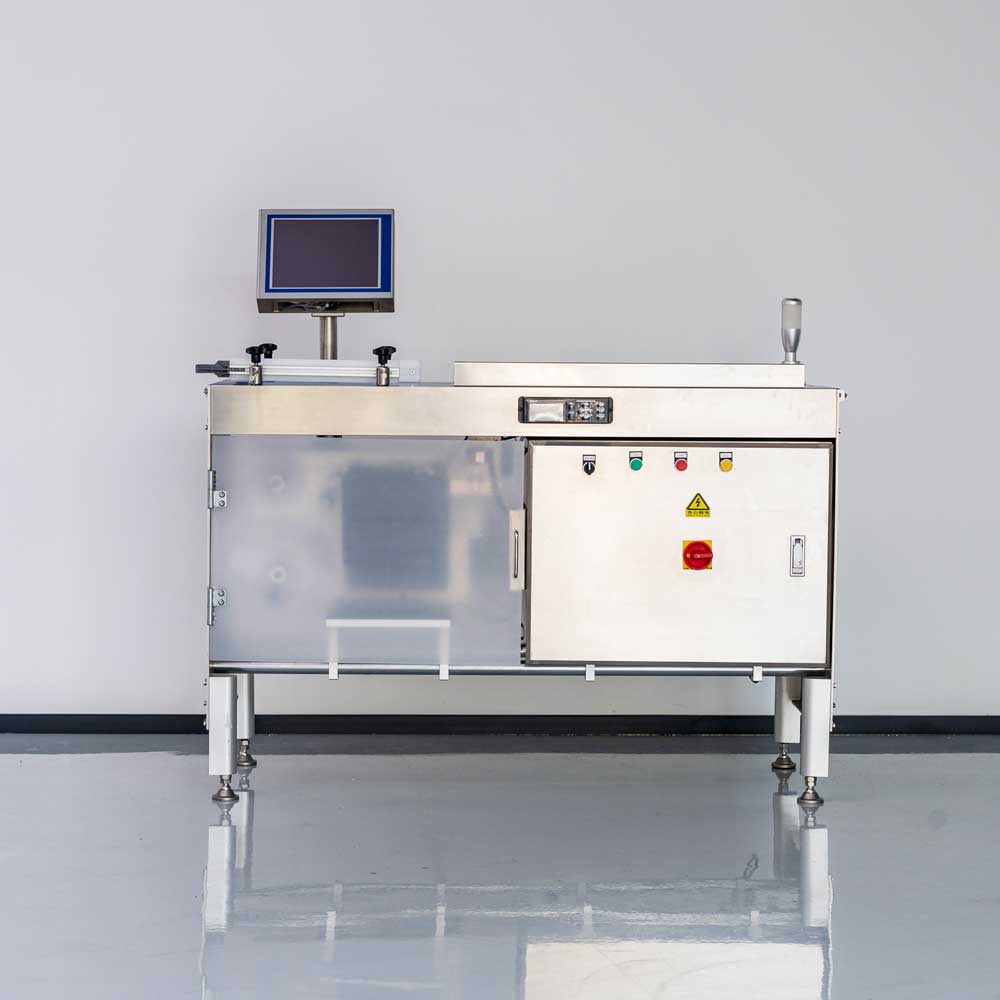

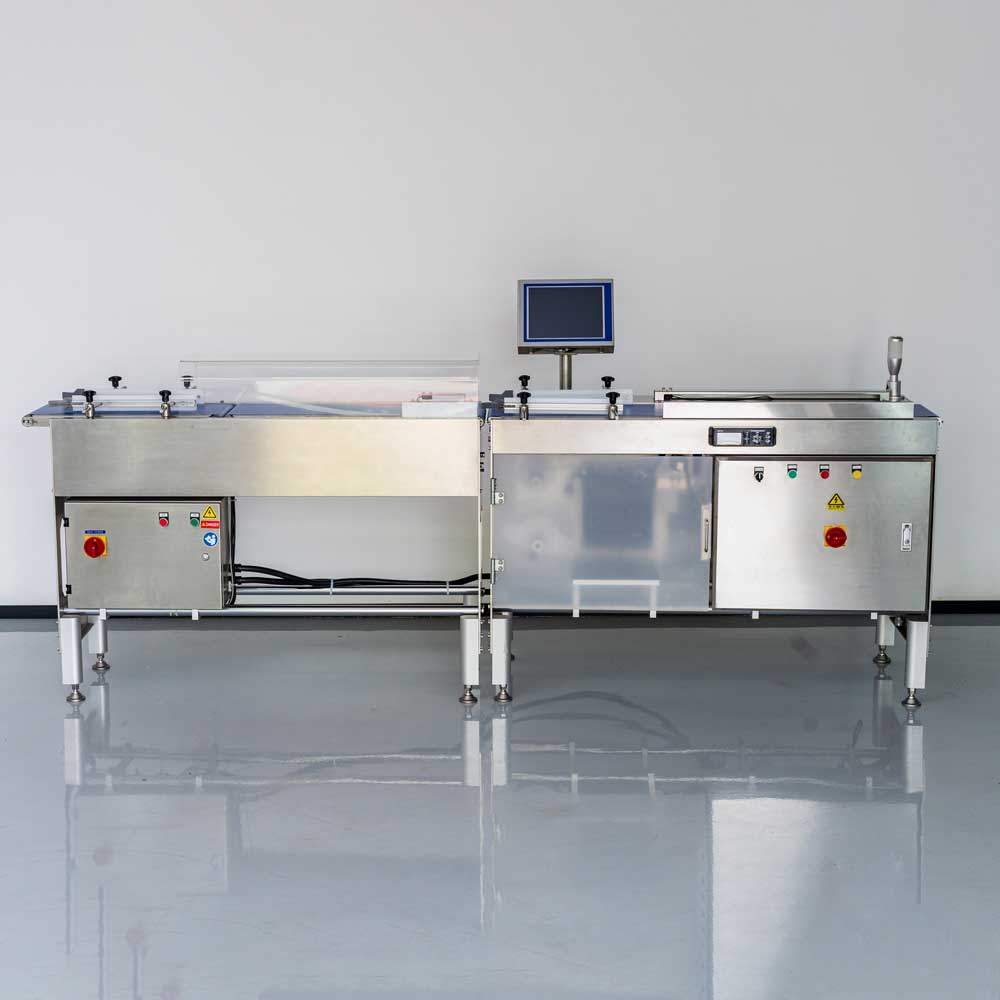

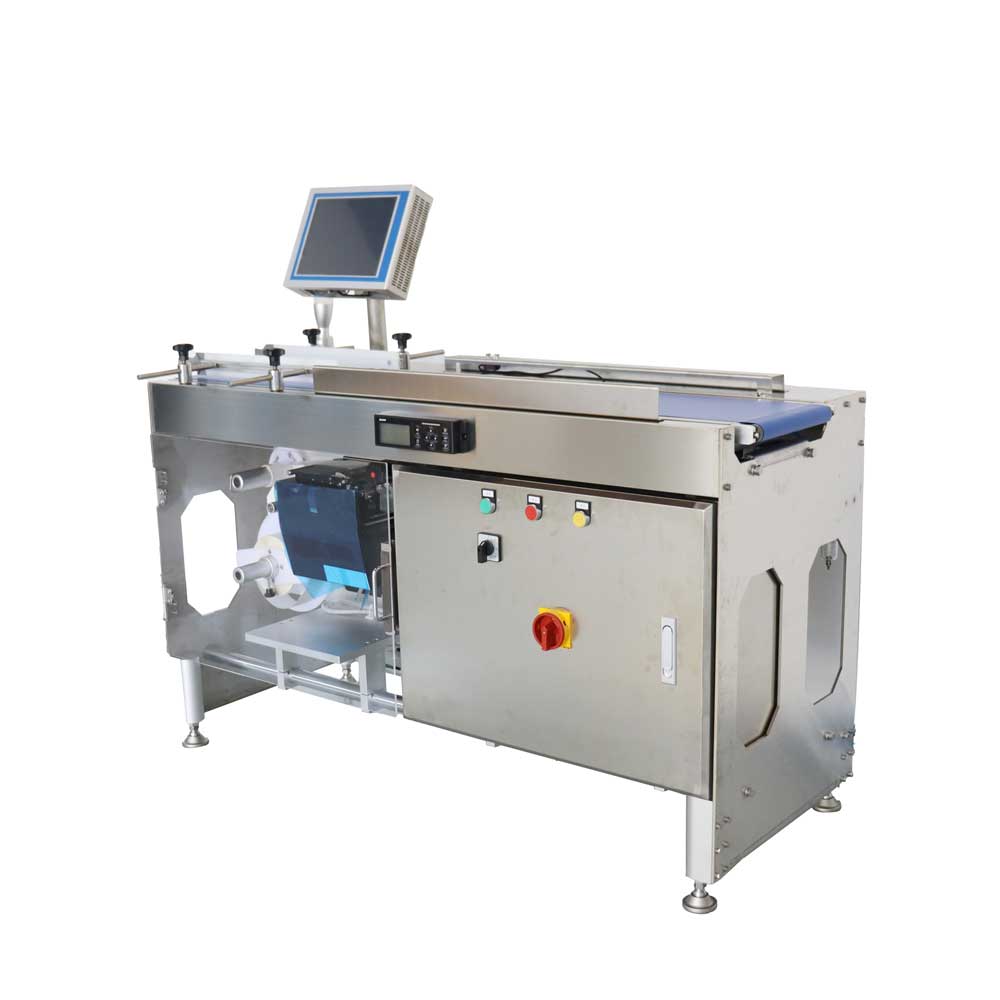

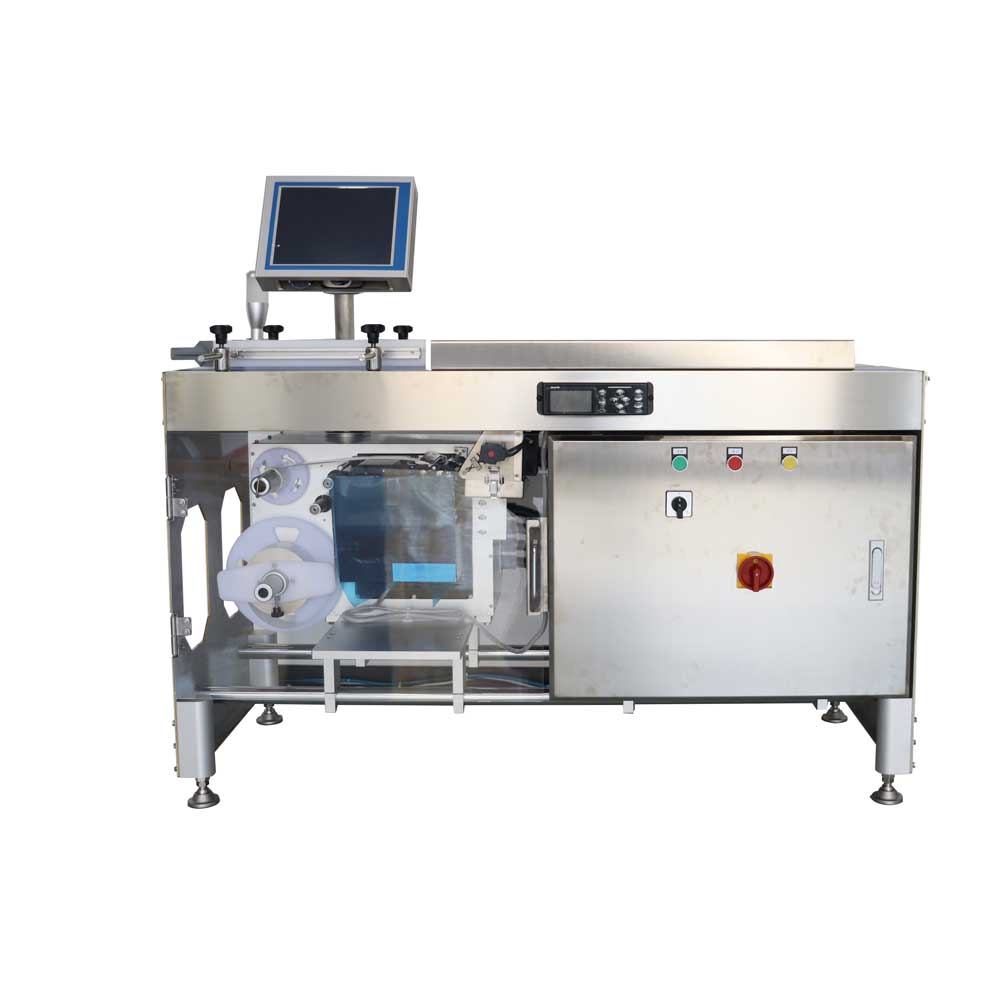

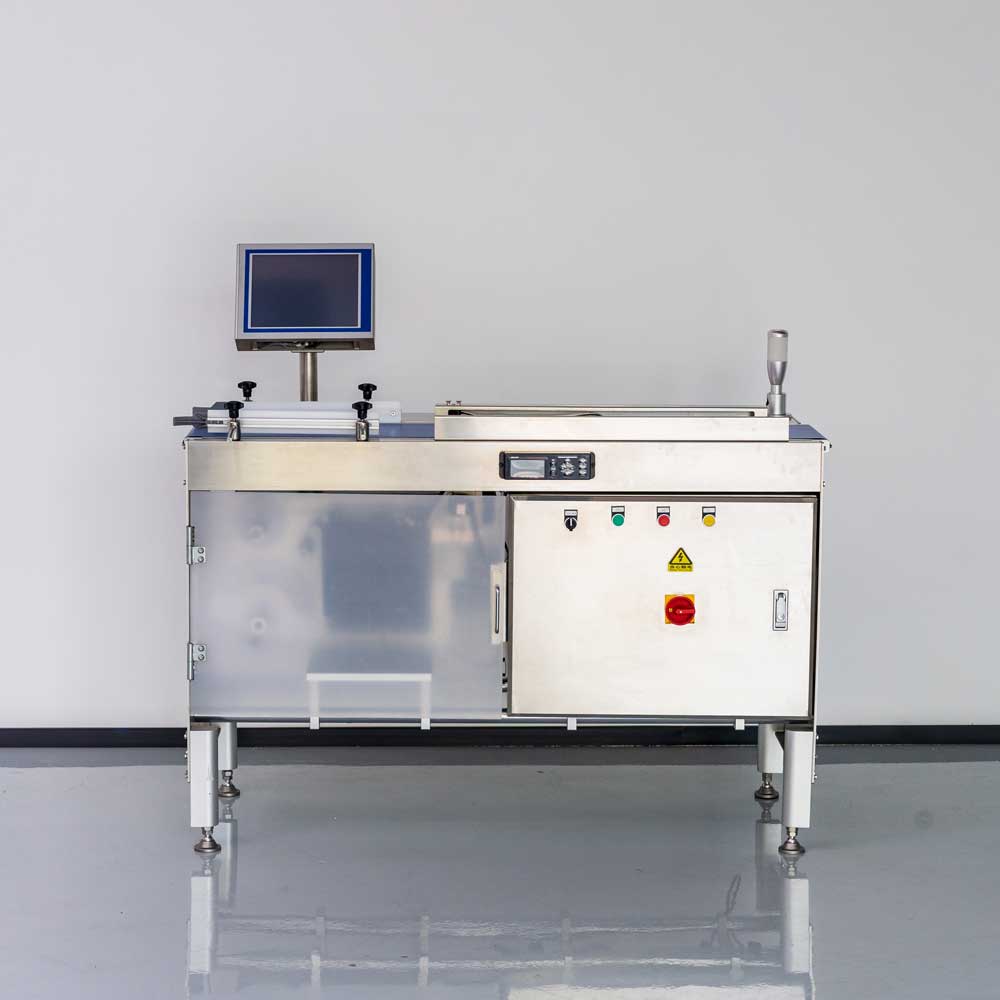

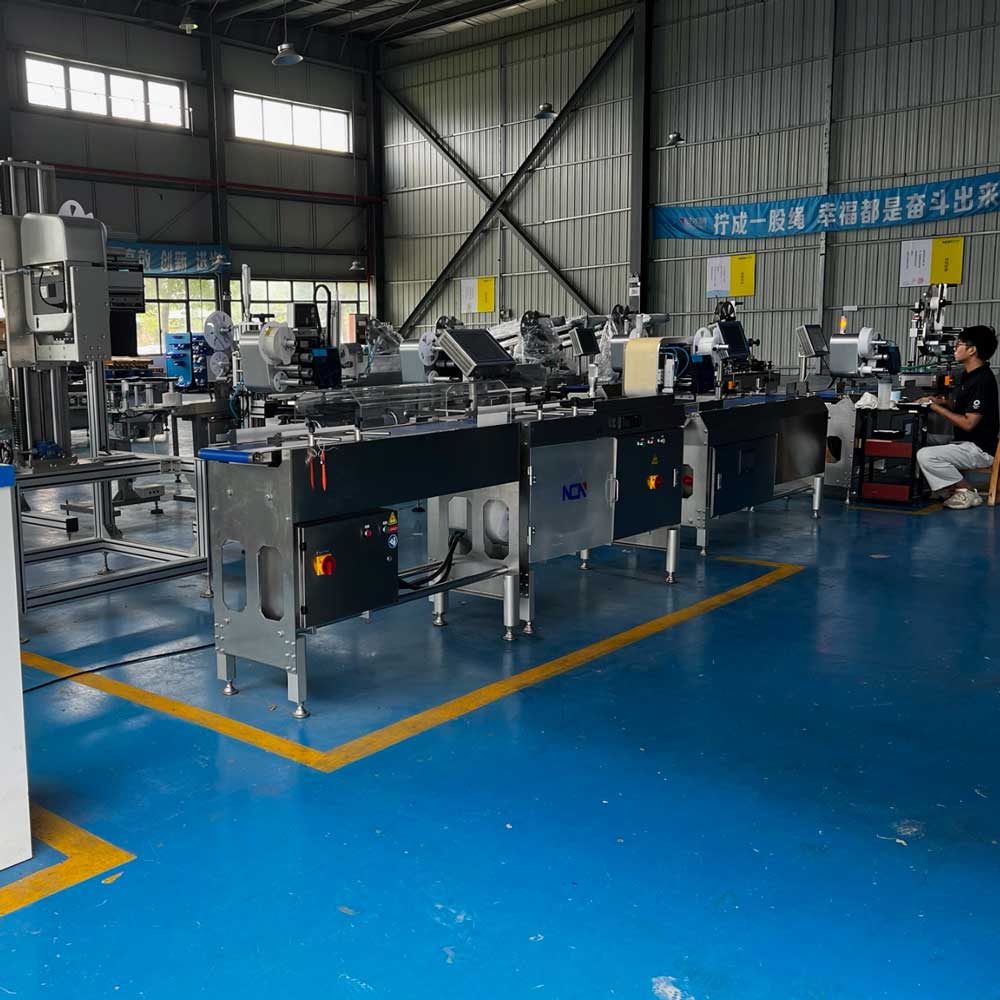

Product Display
Product parameters
